Products

CS-610M

Ceiling Speakers

Download

  • Brochure

Product Features

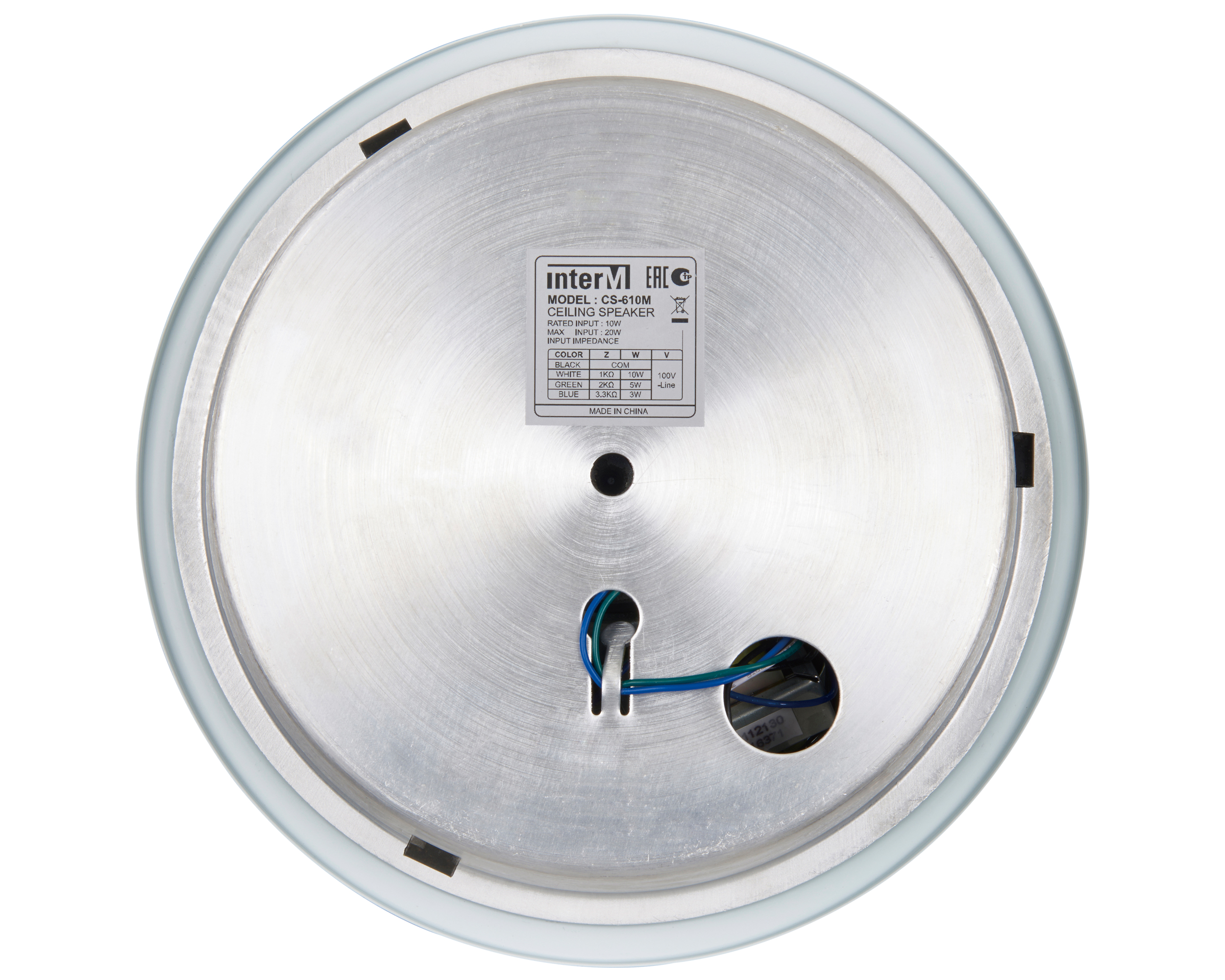

CS-610M is Ceiling Speaker supports output with high sound pressure for announcement and emergency broadcasting.

It is made of metal enclosure and has excellent durability. It is possible to install more rigidly by fixing method using separate grill and bracket. 10W, 5W, and 3W output tabs are provided so that users can freely select and install them according to the installation environment.

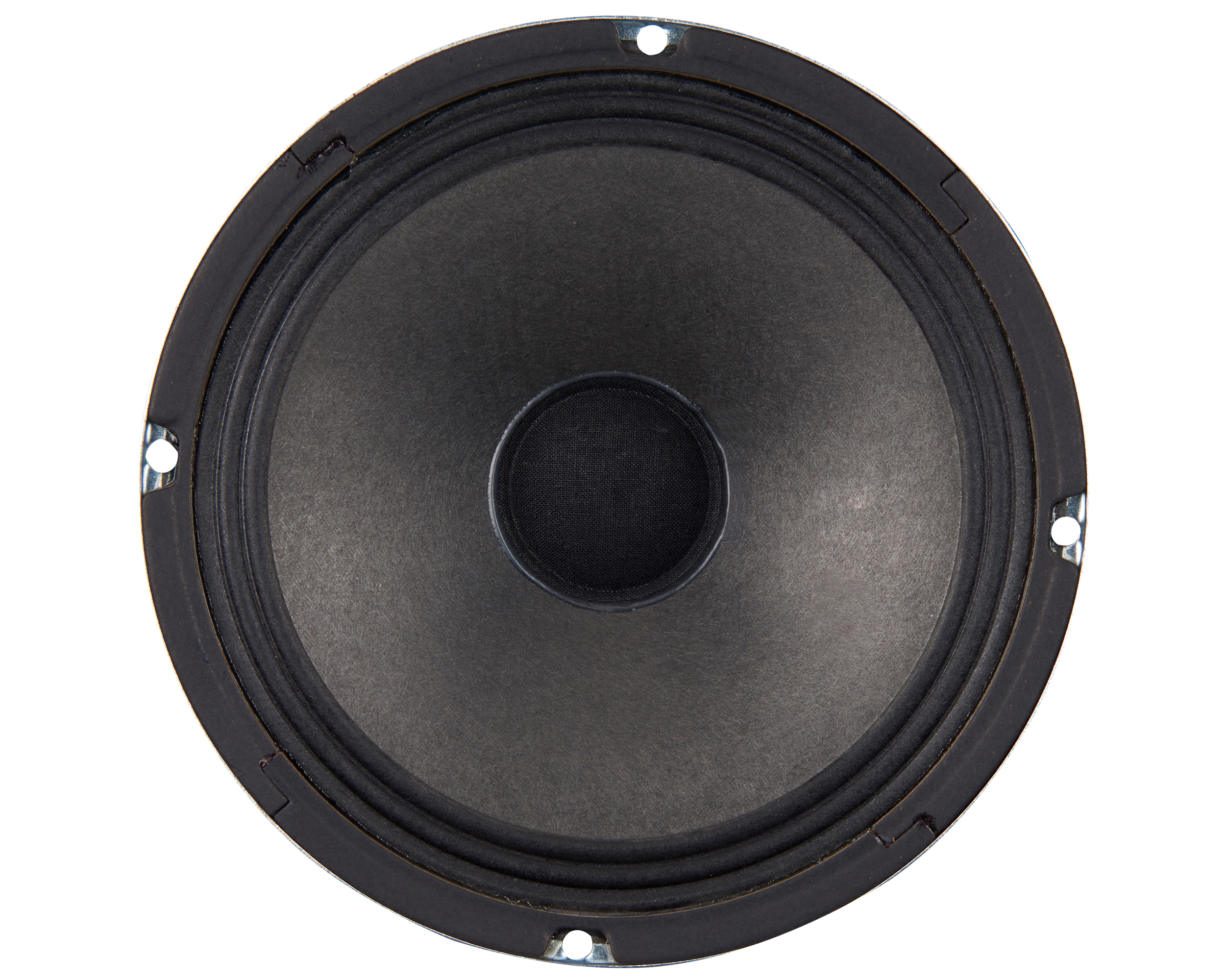

■ 6.5" Full-range speaker



■ Using High quality matching transformer (100V)



■ Dust filter

Use a dust filter inside the grill to block dust ingress and maintain a clean grill.



■ Easy installation

The removable grill is adopted and it is easy to remove and attach. In addition, safety is improved by connecting the unit and cover with wire.

Product specification

 CS-610M
Type 6.5" Full-range Ceiling Speaker
Driver 6.5"
Power Handling (IEC) 10W
Input Power 100V 10/5/3W
Nominal Impedance 100V 1k/2k/3.3kΩ
Power Selection By Wiring
Frequency Range (-20%)100Hz ~ 17.4kHz
Sensitivity (1W/1m) 90dB
Maximum SPL100dB
Nominal Dispersion (Conical) 1kHz 168˚
4kHz 58˚
Input connection Bi-Wired
Enclosure Material Aluminum
Enclosure ColorWHITE
Grille Material Metal Grille
Grille Color LIGHT BLUE
Cut-Out Diameter (Ø, mm) Ø195 ~ 200
Weight (Set) 0.96kg
Dimensions (Net, Ø(WxH)xD, mm) Ø228 x 96
Weather Resistant -
Flame Resistant O
Certification -
Included Accessories -
