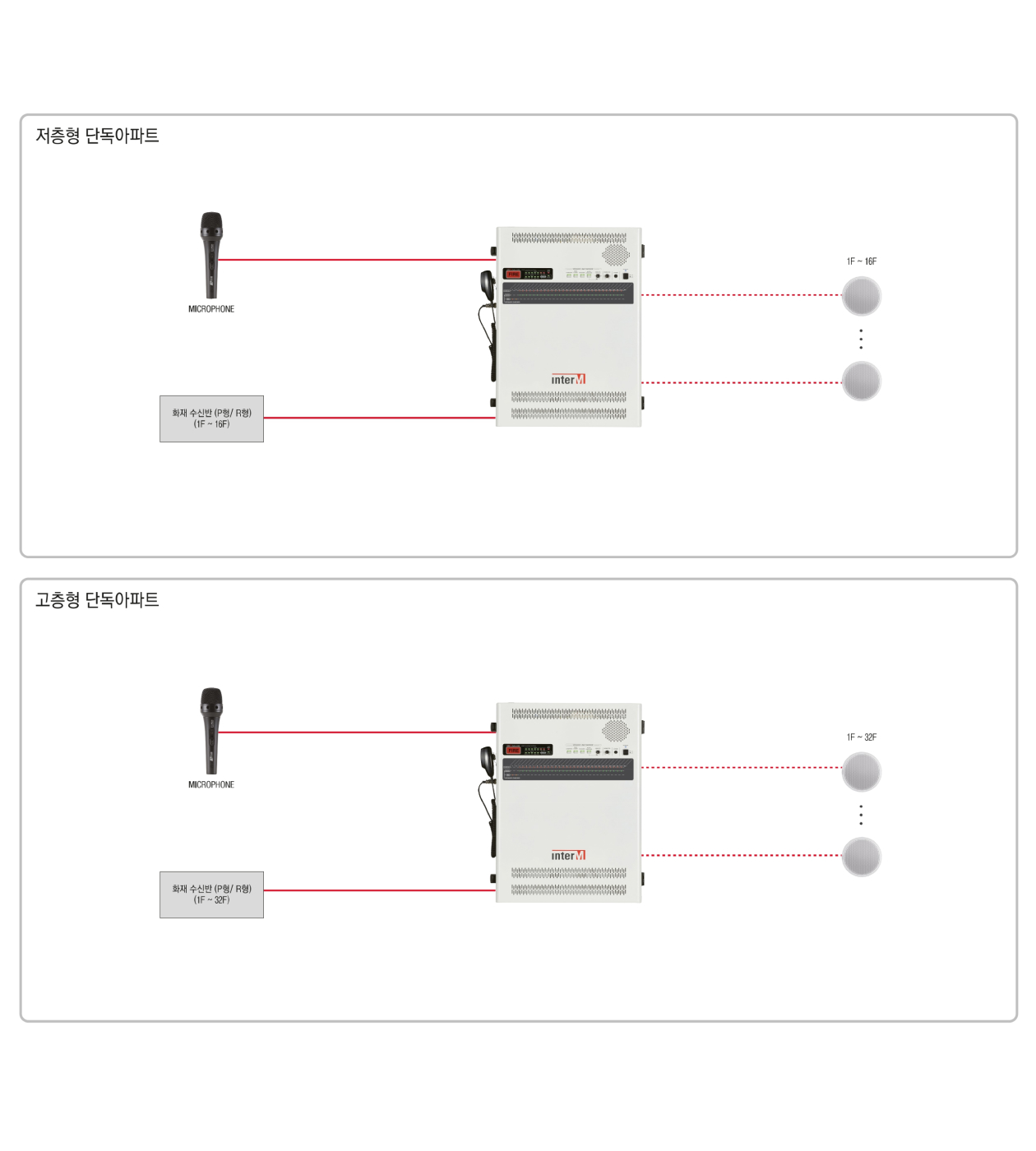

시스템 구성도
구성 특징
장비 구성
| 품명 | 규격 | 단위 | 수량 | 모델명 |
|---|---|---|---|---|
| MAIN CONTROLLER | RS485,LCD | EA | 1 | AMC-3300 |
| EM.INTERFACE(P형) | 화재128CH | EA | 1 | AEC-3104 |
| TERMINAL BOARD | 8CH | EA | 2 | ATB-3108 |
| RX UNIT (32CH) | 32CH | EA | 32 | ARX-5132 |
| SPEAKER CONTROLLER | 16CH, LINE CHECK | EA | 2 | ASC-5116 |
| PRE AMPLIFIER | 9 in/1 out | EA | 1 | PP-6213 |
| EMERGENCY PANEL | 5CH AUTO EM | EA | 1 | EP-6216 |
| PROGRAM DISTRIBUTOR | 1 in/6 out | EA | 2 | PO-6106 |
| CONTROL TOUCH SERVER | 19” Touch Screen, i5 | EA | 1 | TC-6000 |
| KEYBOARD TRAY | 2U | EA | 1 | |
| PC SOFTWARE | SW | EA | 1 | ASW-3100TTS |
| MULTI SOURCE PLAYER | VIRTUAL CD | EA | 1 | CD-6208 |
| DIGITAL TUNER | AM/FM | EA | 1 | TU-6200 |
| CHIME & SIREN | 4음계 | EA | 1 | PE-6103 |
| MONITOR PANEL | 8CH | EA | 2 | PM-6228 |
| POWER AMP | 480W x 2CH | EA | 4 | DPS-480D |
| POWER AMP | 480W | EA | 1 | DPS-480S |
| REMOTE MIC INTERFACE | 8CH | EA | 1 | ARC-3108 |
| REMOTE MIC | 회선입력형, LCD | EA | 2 | ARM-3500 |
| MICROPHONE | DYNAMIC | EA | 1 | MH70 |
| MIC STAND | TABLE TYPE(원형) | EA | 1 | TSG-1 |
| POWER SUPPLY | DC24V | EA | 2 | APD-3210 |
| AUTO BLOWER | AUTO FAN | EA | 2 | PF-6302A |
| POWER DISTRIBUTOR | AC/DC | EA | 2 | PD-6359A |
| BATTERY CHARGER | AUTO | EA | 1 | PB-6207 |
| BATTERY CASE | SPECIAL | EA | 1 | |
| BATTERY | 12V/100AH | EA | 2 | |
| CABINET RACK | 40U, AL | EA | 3 | PA-401D |
