Commercial

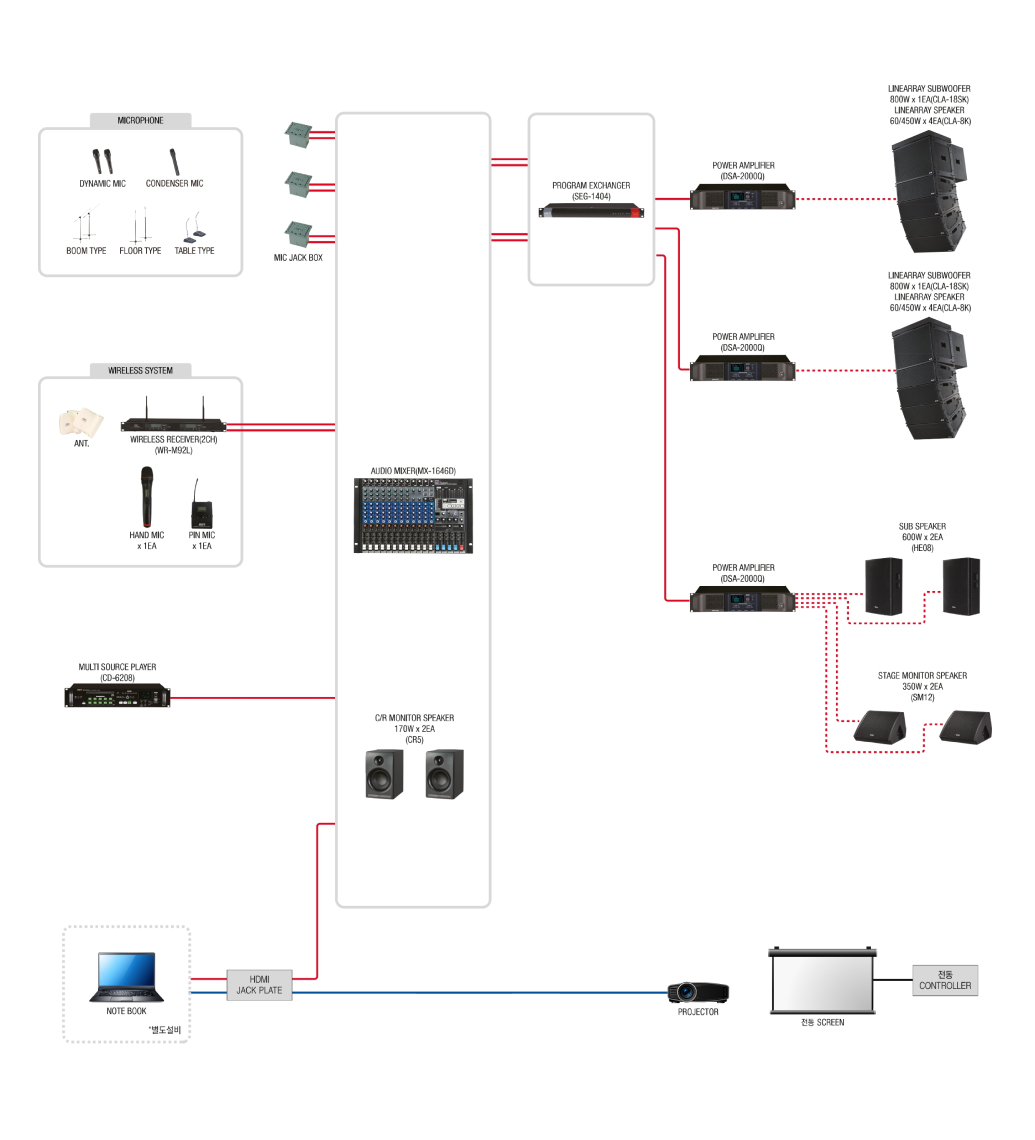

System configuration

시스템 구성도

Features

  • 8-inch or 5-inch line array speaker suitable for the size of the space, applied depending on the space
  • Securing even sound pressure throughout the audience by applying sub-speakers according to the space
  • Control volume and timbre for each source by applying an audio mixer that can control audio sources
  • Application of wireless microphone and wired microphone infrastructure that can be used for various events
  • Projector and motorized screen to provide video content

Device Components

좌우로 움직여 확인하실 수 있습니다.
Device name Standard Unit Quantity Model name
AUDIO MIXER 16in/4out EA 1 MX-1646D
LINEARRAY SPEAKER 60/450W EA 8 CLA-8K
LINEARRAY SUBWOOFER 800W EA 2 CLA-18SK
LINEARRAY SPEAKER FRAME STEEL EA 2 CLA-8K FRAME
CHAIN BLOCK 0.5ton EA 4
FRONT FILL SPEAKER 200W EA 2 HE08
STAGE MO. SPEAKER 400W EA 2 SM12
SPEAKER EXT. CABLE L-10m EA 2
POWERED SPEAKER 170W EA 2 CR5
POWER AMP & DSP 1200W x 4CH EA 3 DSA-2000Q
MULTI SOURCE PLAYER VIRTUAL CD EA 1 CD-6208
WIRELESS RECEIVER 900MHz, 2CH EA 1 WR-M92L
WIRELESS HAND MIC 900MHz EA 1 WH-M91L
WIRELESS PIN MIC 900MHz EA 1 WB-M91L
WIRELESS ANTENNA 900MHz EA 2 EPA-9001
MICROPHONE DYNAMIC EA 2 MH80
MICROPHONE CONDENSER EA 1 MC41P
MIC EXT. CABLE L-10m EA 3
MIC STAND BOOM TYPE EA 1 BS-4
MIC STAND FLOOR TYPE EA 1 FS-3
MIC STAND TABLE TYPE(원형) EA 1 TSG-1
MIC JACK BOX 2CCT EA 3
SPEAKER JACK BOX 2CCT EA 2
POWER DISTRIBUTOR AC 9CH EA 1 SPAC-S9
