Educational

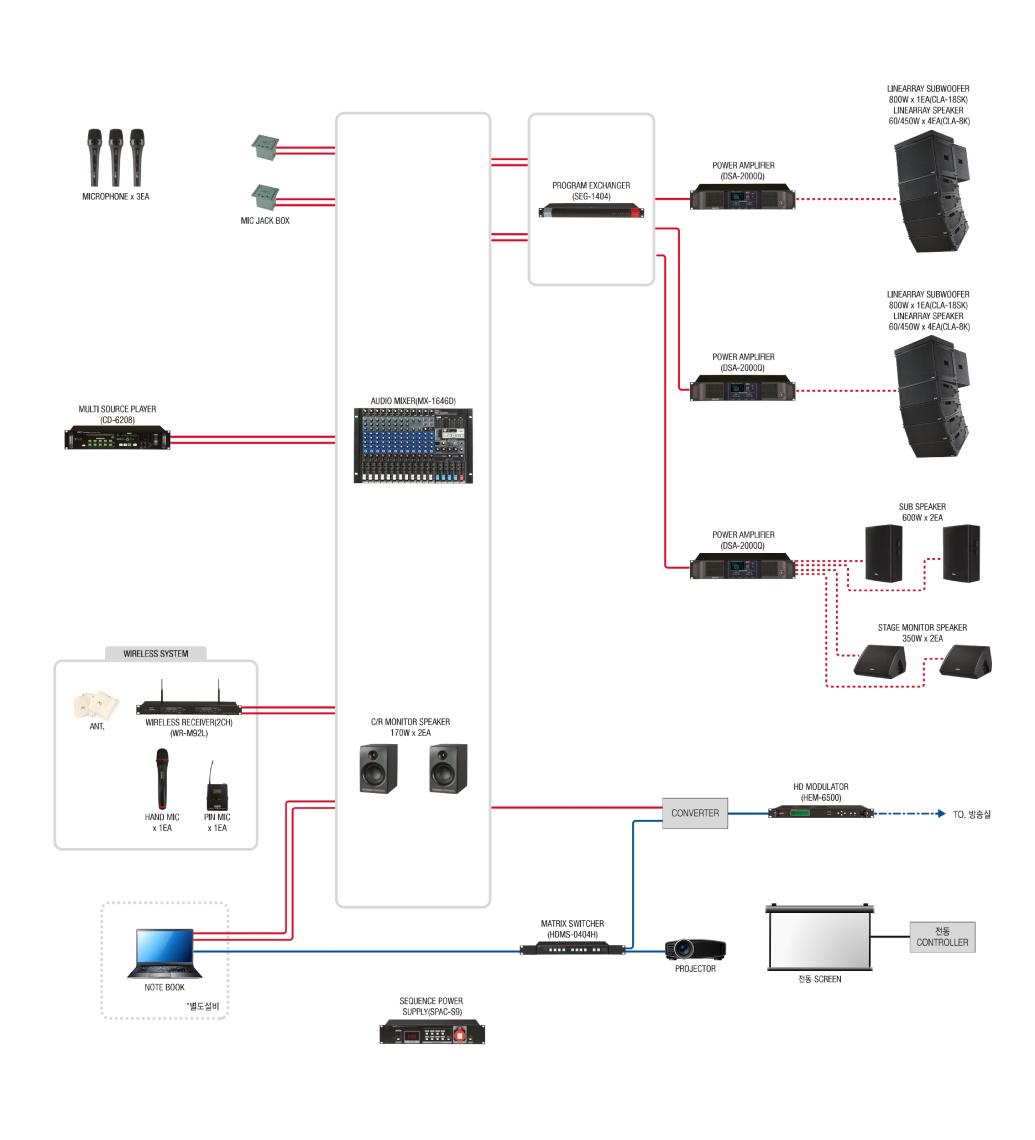

System configuration

시스템 구성도

Features

  • To ensure large-scale events, sound pressure and clarity are secured by installing a high-powered speaker system and auxiliary speakers
  • Volume and timbre control through audio mixer and sources such as wired and wireless microphones
  • Stage monitor speaker for stage events
  • Image projector and motorized screen to provide various contents of media

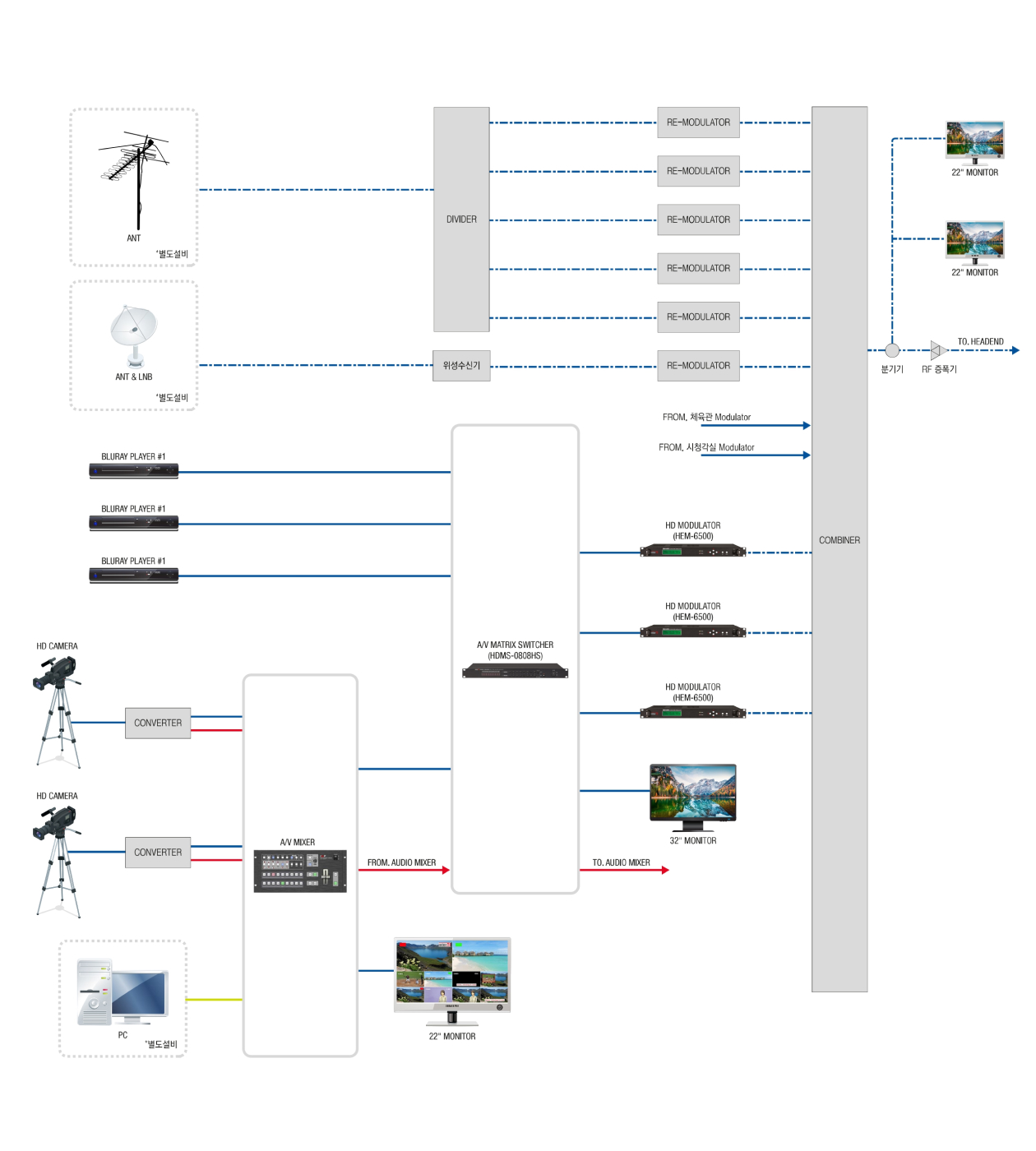

  • Transmitting device that can transmit events in the multi-purpose auditorium to each classroom through the broadcasting room

Device Components

좌우로 움직여 확인하실 수 있습니다.
Device name Standard Unit Quantity Model name
ANALOG AUDIO MIXER 16CH EA 1 MX-1646D
DIGITAL SIGNAL PROCESSOR 4 IN / 8 OUT EA 1 CSP-4.8
LINEARRAY SPEAKER 60/450W EA 8 CLA-8K
LINEARRAY SUBWOOFER 800W EA 2 CLA-18SK
LINEARRAY SPEAKER FRAME STEEL EA 2 CLA-8K FRAME
CHAIN BLOCK 1ton EA 4 CHAIN BLOCK-2
POWERED SPEAKER 170W EA 2 CR5
SPEAKER 350W EA 2 CMM-12K
SPEAKER EXT. CABLE L-10m EA 2
SPEAKER 600W EA 1 PE15R
SPEAKER 600W EA 1 PE15L
SPEAKER BRACKET STEEL EA 2 SB-30HA
DIGITAL AMPLIFIER 1200W x 4CH EA 3 DSA-2000Q
WIRELESS RECEIVER 900MHz / 2CH EA 1 WR-M92L
WIRELESS HAND MIC 900MHz EA 1 WH-M91L
WIRELESS BELT MIC 900MHz EA 1 WB-M91L
WIRELESS ANTENNA 900MHz EA 2 EPA-9001
MULTI SOURCE PLAYER VIRTUAL CD EA 1 CDR-01
MICROPHONE DYNAMIC EA 3 MH80
MICROPHONE DYNAMIC EA 2 MG18
MICROPHONE BASE STEEL EA 2 MGM-C1
순차전원기 AC 9CH EA 2 SPAC-S9
MODULATOR HD EA 1 HEM-6300
VIDEO CONVERTER HDMI+AUDIO to HDMI EA 1 HAM-100
A/V MATRIX SWITCHER HD EA 1 HDMS-0404H
PROGRAM EXCHANGER 4CH EA 1 SEG-1404
CABINET RACK 19" EA 1 PA-401D
AV CONVERTER HDMI TO UTP (TX/RX) EA 2
