Commercial

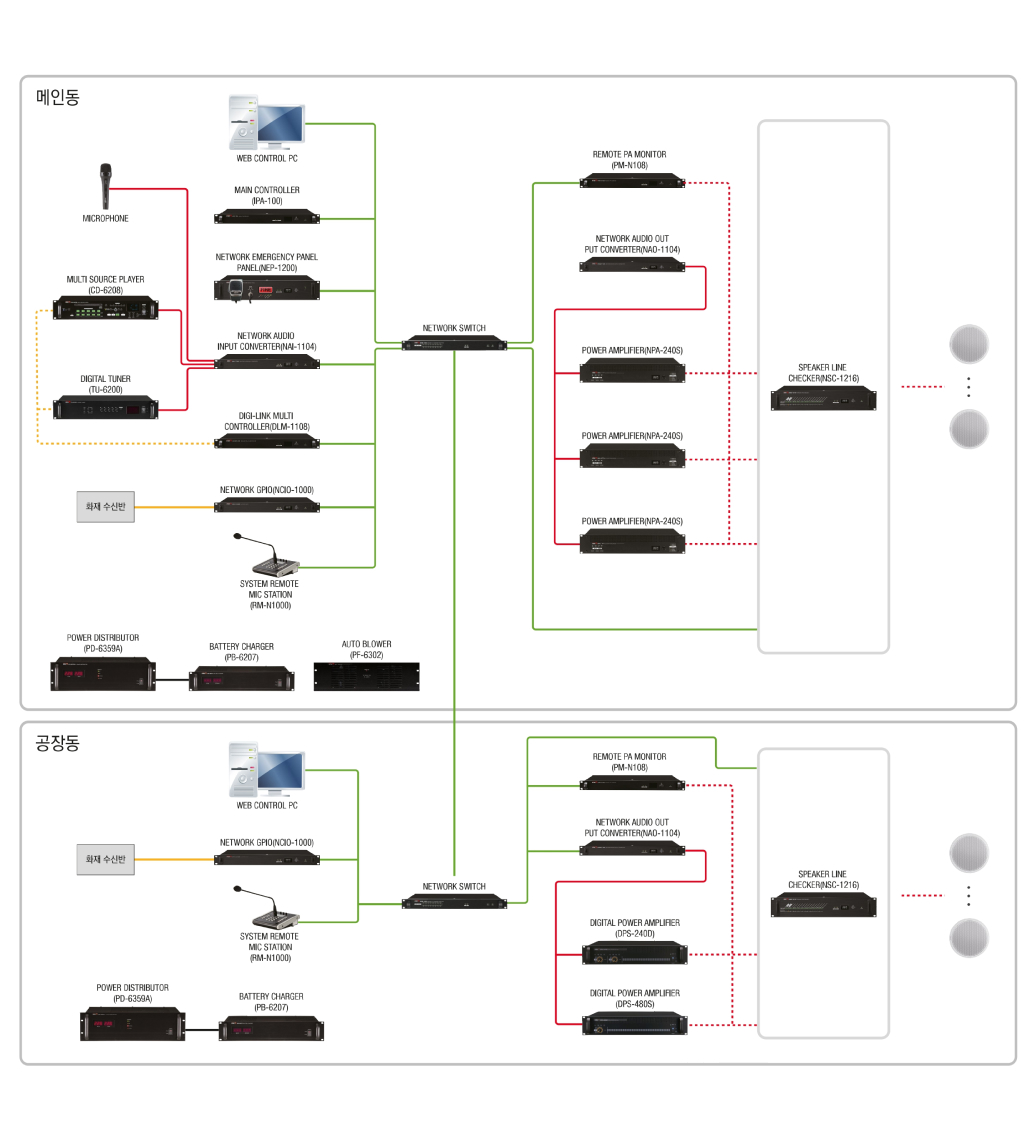

System configuration

시스템 구성도

Features

  • Composed of a single broadcasting system through a network between the main management building and the factory building
  • Efficient line construction by transmitting audio and control signals through LAN and optical cables based on network
  • Since it can be expanded only with network lines, the system can be easily expanded at a low cost in the future
  • Integrated management of multiple buildings with a small number of operators as an integrated management system for each building
  • Real-time monitoring of remote equipment and checking the playback status of sound sources over the network, enabling prompt action in case of an error

Device Components

You can check it by moving it from side to side.
Device name Standard Unit Quantity Model name
NETWORK CONTROL SERVER SERVER EA 1 IPA-100
NETWORK GPIO CONTACT 16CH EA 1 NCIO-1000
NETWORK AUDIO INPUT CONVERTER 4CH EA 1 NAI-1104
NETWORK AUDIO OUTPUT CONVERTER 4CH EA 1 NAO-1104
SPEAKER LINE CHECKER 16CH EA 1 NSC-1216
DIGI-LINK MULTI CONTROLLER DIGI-LINK EA 1 DLM-1108
NETWORK EMERGENCY PANEL TCP/IP EA 1 NEP-1200
CONTROL PC CONTROL EA 1 TC-6000
SWITCHING HUB L2, 16port EA 1
MULTI SOURCE PLAYER VIRTUAL CD EA 1 CD-6208
DIGITAL TUNER AM/FM EA 1 TU-6200
REMOTE PA MONITOR TCP/IP EA 1 PM-N108
POWER AMP 240W x 1CH EA 3 DPS-240S
SYSTEM REMOTE MIC STATION TCP/IP EA 1 RM-N1000
POWER DISTRIBUTOR AC/DC EA 2 PD-6359A
BATTERY CHARGER AUTO EA 1 PB-6207
NETWORK GPIO CONTACT 16CH EA 1 NCIO-1000
NETWORK AUDIO OUTPUT CONVERTER 4CH EA 1 NAO-1104
SPEAKER LINE CHECKER 16CH EA 1 NSC-1216
CONTROL PC CONTROL EA 1 CONTROL PC
SWITCHING HUB L2, 16port EA 1
REMOTE PA MONITOR TCP/IP EA 1 PM-N108
POWER AMP 240W x 2CH EA 1 DPS-240S
POWER AMP 480W x 1CH EA 1 DPS-480S
SYSTEM REMOTE MIC STATION TCP/IP EA 1 RM-N1000
POWER DISTRIBUTOR AC/DC EA 2 PD-6359A
BATTERY CHARGER AUTO EA 1 PB-6207
