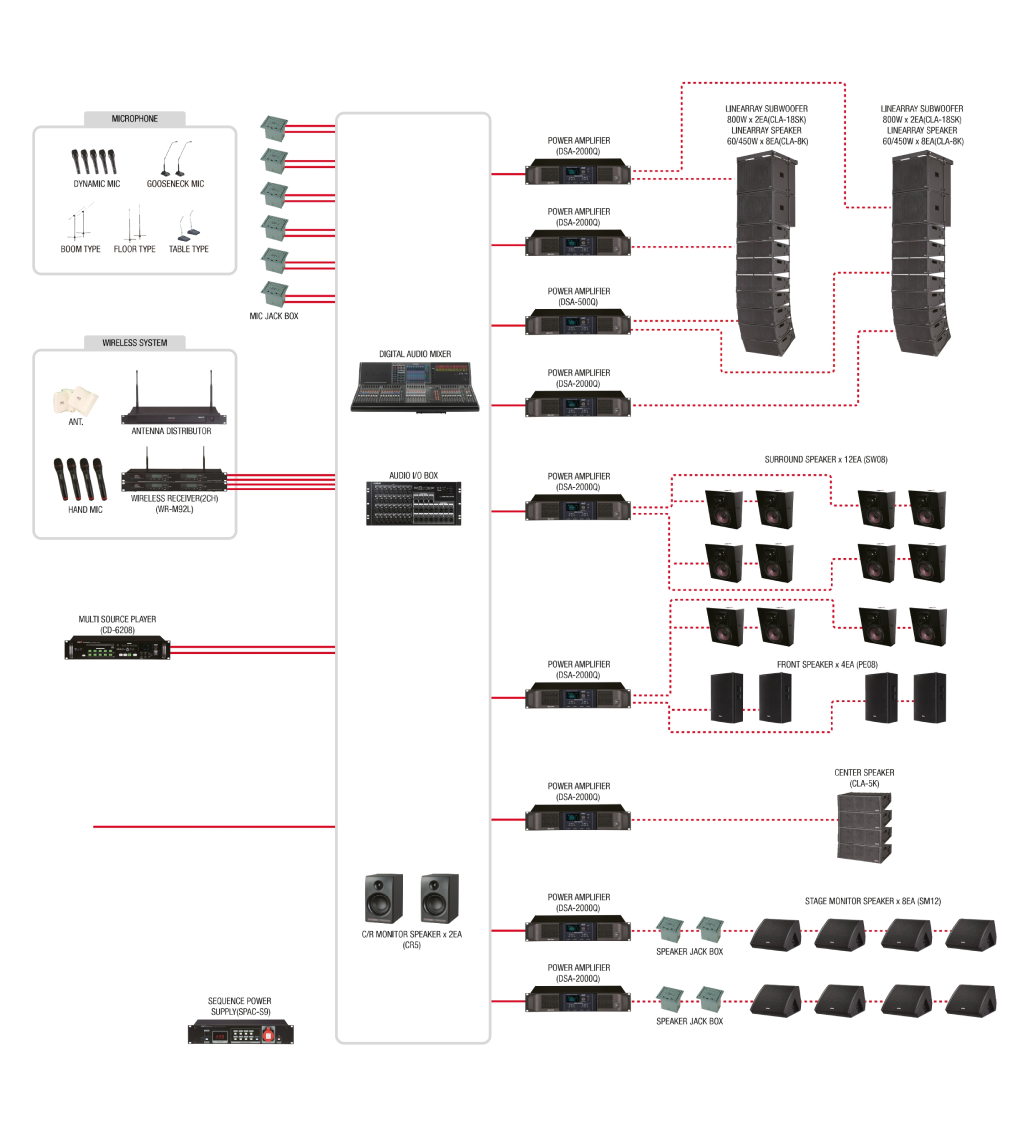

System configuration

시스템 구성도

Features

  • Applied speaker system considering spatial and architectural features
  • High power speaker with high output and frequency characteristics of concert hall level
  • Multi-channel digital audio mixer that can control multiple instruments and choir sound sources
  • Digital transmission infrastructure that minimizes noise generation
  • Ensuring efficiency and operational convenience with a digital mixer with a built-in DSP
  • Securing sufficient input for various events with a high-quality sound pickup microphone and multiple wireless microphones
  • Installation of separate speakers for auxiliary rooms

Device Components

좌우로 움직여 확인하실 수 있습니다.
Device name Standard Unit Quantity Model name
DIGITAL AUDIO MIXER 32CH EA 1
STAGE-BOX 32IN-16OUT EA 1
LINE ARRAY SPEAKER 450W/60W EA 12 CLA-8K
LINE ARRAY SPEAKER FRAME 400W EA 2 CLA-8K FRAME
LINE ARRAY SUBWOOFER 800W EA 4 CLA-18SK
UNDER BALCONY SPEAKER 100W EA 4 MS-100
UNDER BALCONY BRACKET STEEL EA 4 MSB-100
자모실 SPEAKER 80W EA 2 MS-80
SPEAKER BRACKET STEEL EA 2 MSB-80
강대상 STAGE MO. SPEAKER 400W EA 2 SM12
성가대 MONITOR SPEAKER 400W EA 2 HE10
SPEAKER STAND TRIPOD (1EA) EA 2 TSS-3
로비 CEILING SPEAKER 20W 2WAY, KS인증 EA 2 CS-630FH
C/R MONITOR SPEAKER 250W EA 2 CR5
LINE ARRAY SPEAKER POWER AMP 1200W 4CH EA 2 DSA-2000Q
LINE ARRAY SPEAKER POWER AMP 300W 4CH EA 1 DSA-500Q
LINE ARRAY SUBWOOFER POWER AMP 1200W 4CH EA 1 DSA-2000Q
UNDER BALCONY SPK. POWER AMP 300W 4CH EA 1 DSA-500Q
자모실, 로비 SPEAKER POWER AMP 300W 4CH EA 1 DSA-500Q
강대상, 성가대 SPEAKER POWER AMP 1200W 4CH EA 1 DSA-500Q
CD PLAYER CD & USB EA 1 CD-6208
EVNET PLAYER SD EA 1 EVP-1010
W/L HAND RECEIVER 900MHz EA 5 WR-M92L
W/L HAND MICROPHONE 900MHz EA 5 WH-M91L
W/L PIN MICROPHONE 900MHz EA 4 WB-M91L
W/L ANTENNA 900MHz EA 2 EPA-9001
W/L ANT. DISTRIBUTOR EA 2 WAD-900
강대상 MICROPHONE EA 2 MG21
인도자 MICROPHONE EA 1 MH80
CONDENSER MICROPHONE EA 4 MC41P
MIC JACK BOX RM-01전용 EA 3
SPEAKER JACK BOX 3BAY EA 3
POWER DISTRIBUTOR 16in/4out EA 2 SPAC-S9
