Educational

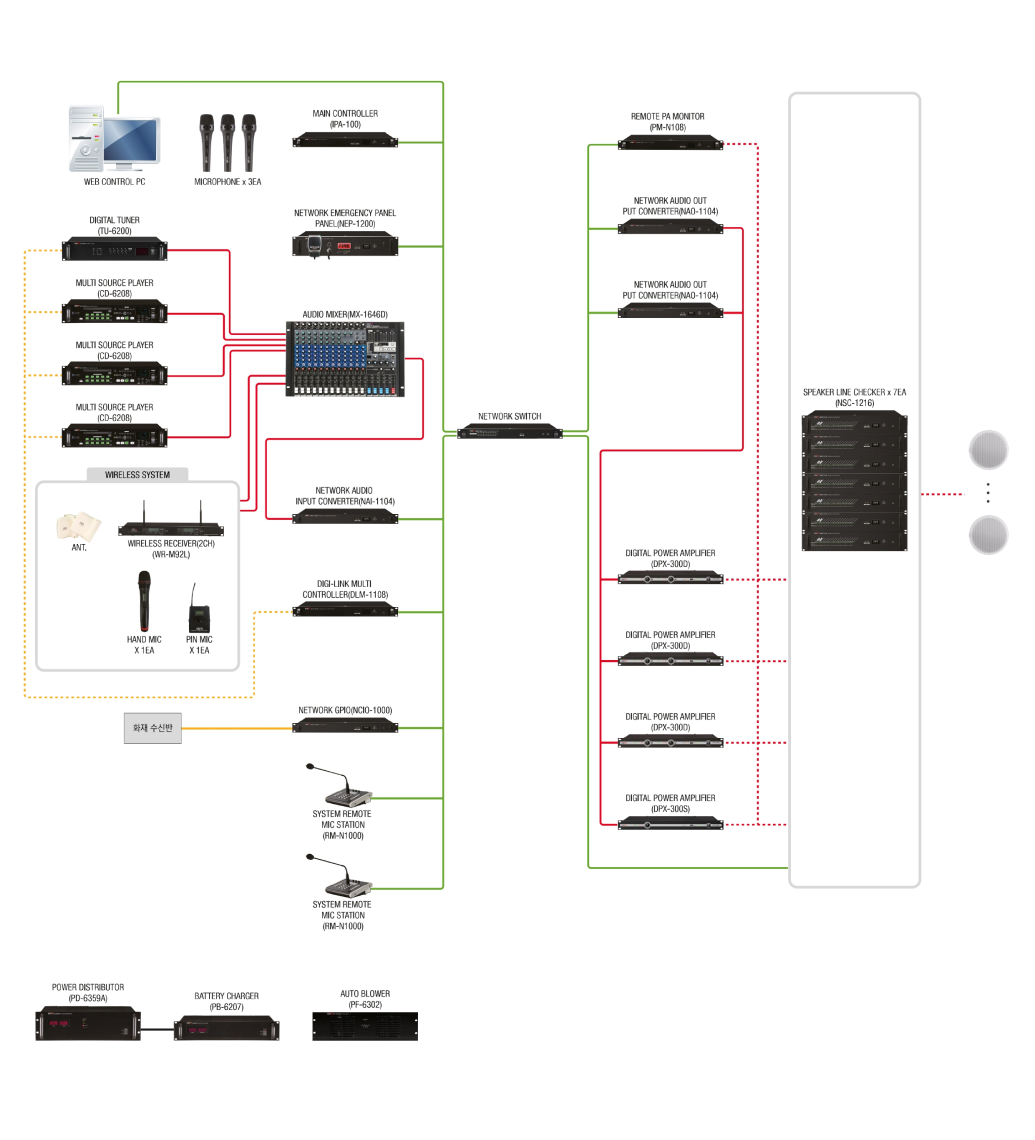

System configuration

시스템 구성도

Features

  • 24 bus broadcasting availabe for broadcasting by grade and class and expandable system up to 512 zones
  • Easy control through PC and remote integrated control through network
  • TTS sound source broadcasting and schedule broadcasting control through network (MP3, TTS-8 languages supported)
  • Web-based integrated control software regardless of PC failure (PC, laptop, tablet can be used)
  • Network remote microphone broadcasting with digital transmission method (No far-distance noise or line degradation)
  • Real-time short detection function (automatically cut off the corresponding line in case of short circuit)
  • Built-in protection circuit in case of earth fault and reverse voltage of speaker line (when applying DPX series amplifier)
  • 255 group broadcasting allows easy operation of multiple classrooms and broadcasting by grade level

장비 구성

좌우로 움직여 확인하실 수 있습니다.
Device name Standard Unit Quantity Model name
NETWORK CONTROL SERVER SERVER EA 1 IPA-100
NETWORK GPIO CONTACT 16CH EA 1 NCIO-1000
NETWORK AUDIO INPUT CONVERTER 4CH EA 1 NAI-1104
NETWORK AUDIO OUTPUT CONVERTER 4CH EA 2 NAO-1104
SPEAKER LINE CHECKER 16CH EA 7 NSC-1216
DIGI-LINK MULTI CONTROLLER DIGI-LINK EA 1 DLM-1108
NETWORK EMERGENCY PANEL TCP/IP EA 1 NEP-1200
CONTROL TOUCH SERVER 19” Touch Screen, i5 EA 1 TC-6000
AUDIO MIXER 16in/4out EA 1 MX-1646D
SWITCHING HUB L2, 16port EA 1 GES-162
MULTI SOURCE PLAYER VIRTUAL CD EA 3 CD-6208
DIGITAL TUNER AM/FM EA 1 TU-6200
REMOTE PA MONITOR TCP/IP EA 1 PM-N108
DIGITAL POWER AMP 300W x 2CH EA 3 DPX-300D
DIGITAL POWER AMP 300W EA 1 DPX-300S
SYSTEM REMOTE MIC STATION TCP/IP EA 2 RM-N1000
WIRELESS RECEIVER 900MHz / 2CH EA 1 WR-M92L
WIRELESS HAND MIC 900MHz EA 1 WH-M91L
WIRELESS BELT MIC 900MHz EA 1 WB-M91L
WIRELESS ANTENNA 900MHz EA 2 EPA-9001
MICROPHONE DYNAMIC EA 3 MD-50S
MIC STAND TABLE TYPE EA 3 TSG-1
POWER DISTRIBUTOR AC/DC EA 2 PD-6359A
BATTERY CHARGER AUTO EA 1 PB-6207
AUTO BLOWER AUTO FAN EA 2 PF-6302
CABINET RACK 40U EA 2 PA-401D
